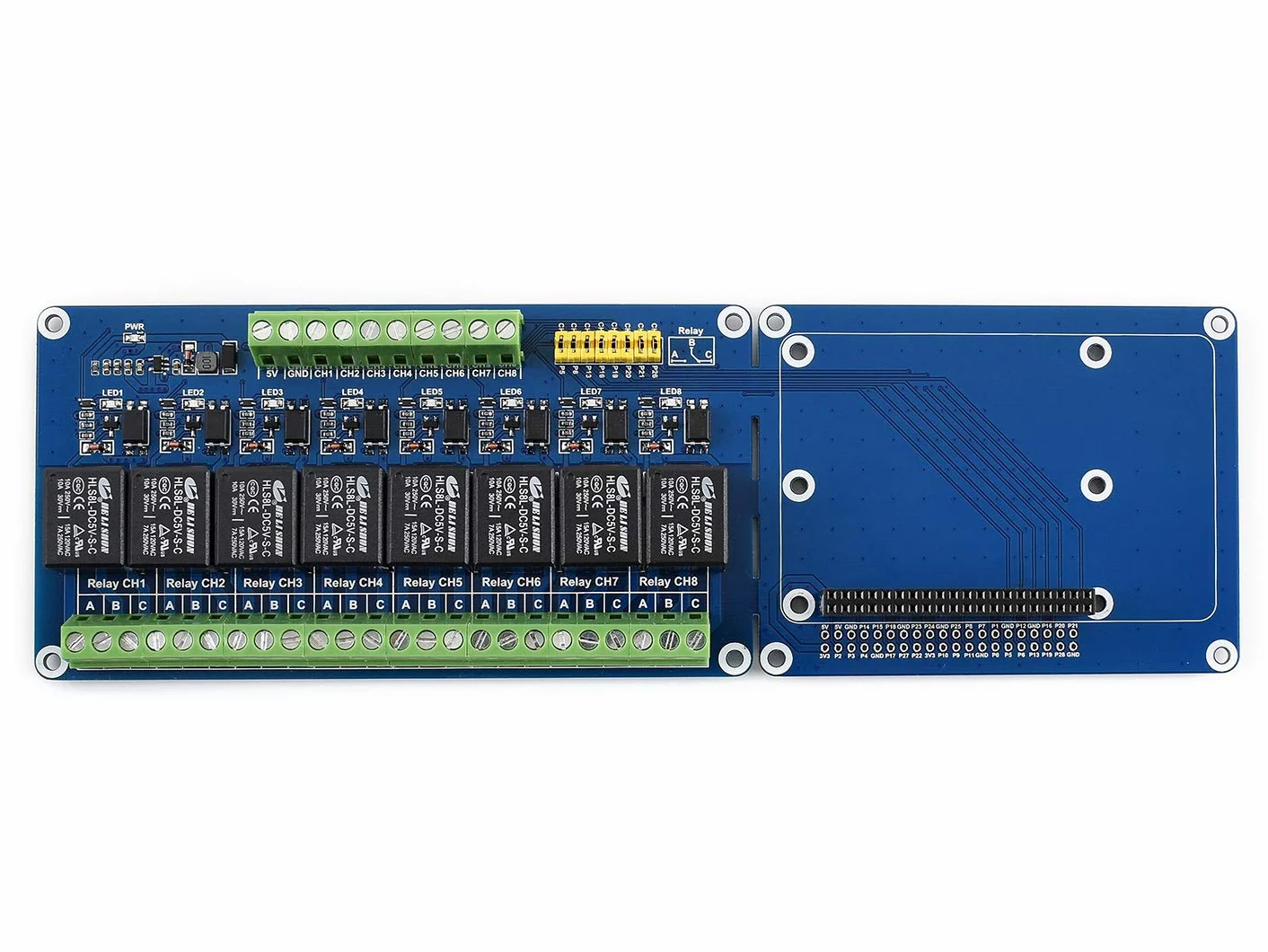

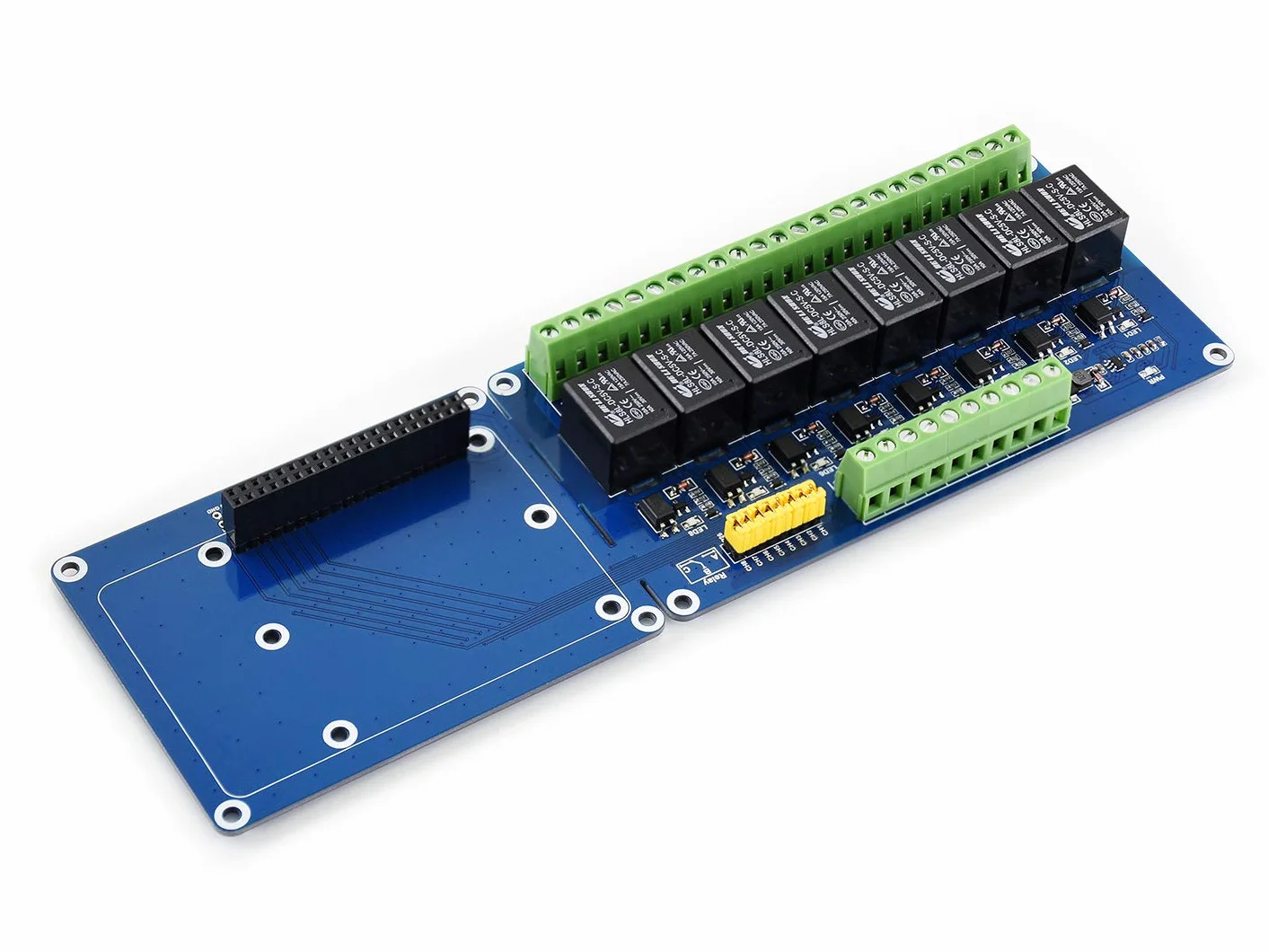

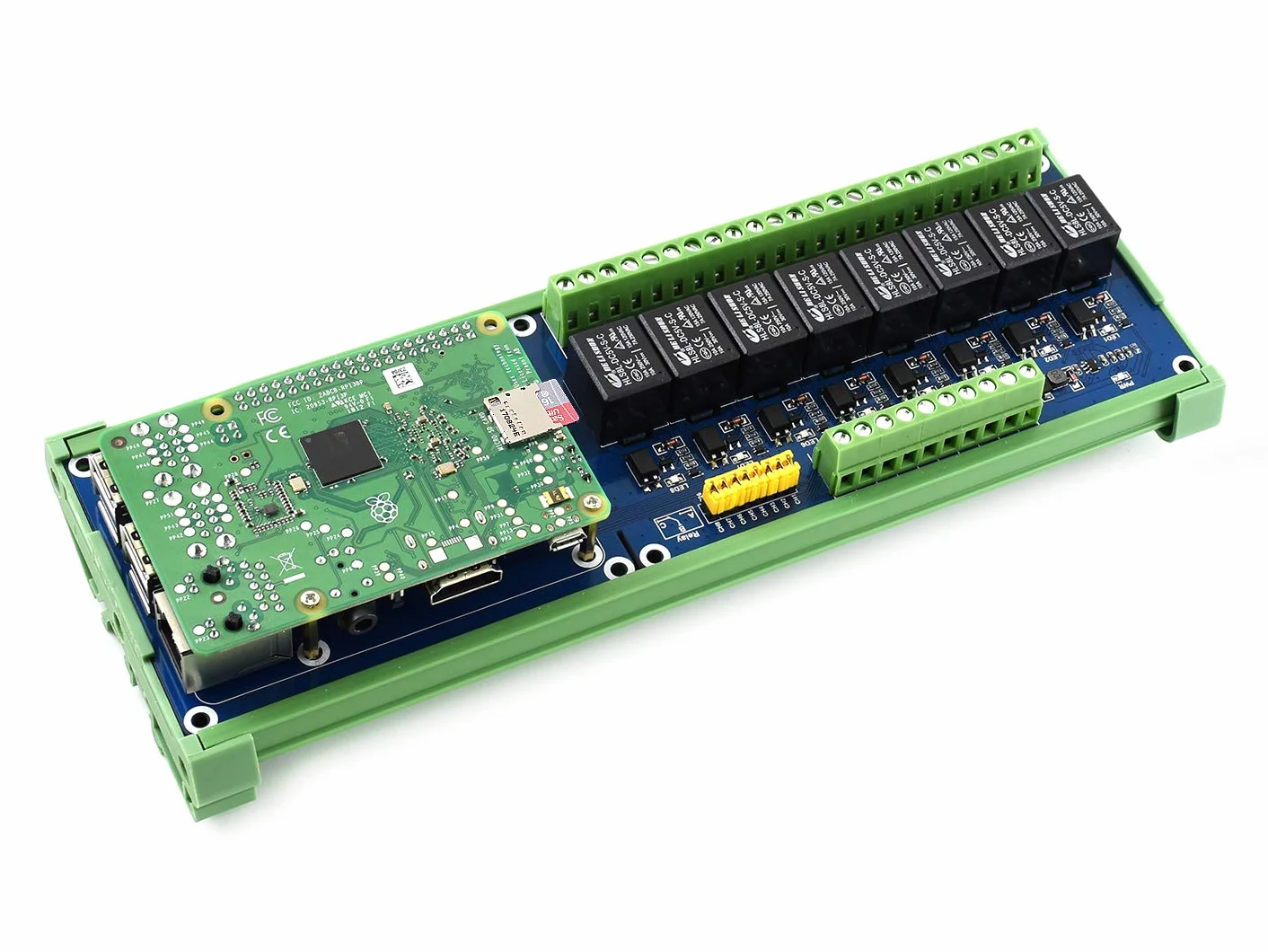

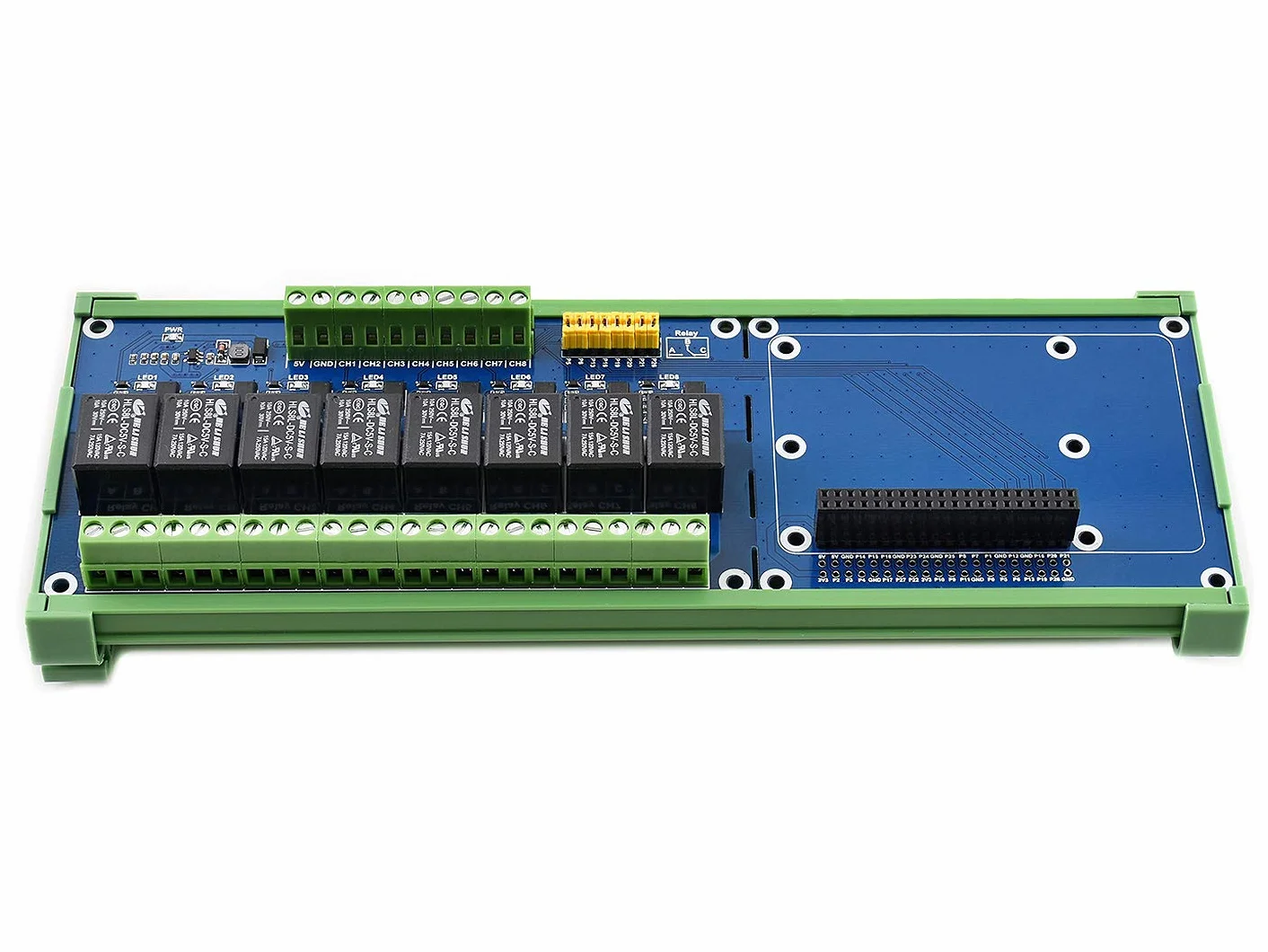

Waveshare 8-ch Relays Expansion Board Compatible with Raspberry Pi Control High Voltage Products Standard Rail Mount Bottom Case

Marca: Waveshare
Nombre del modelo: RPi Relay Board (B)
Modelo de CPU: Raspberry Pi Zero 2 W
Tecnología de conectividad: USB, Wi-Fi

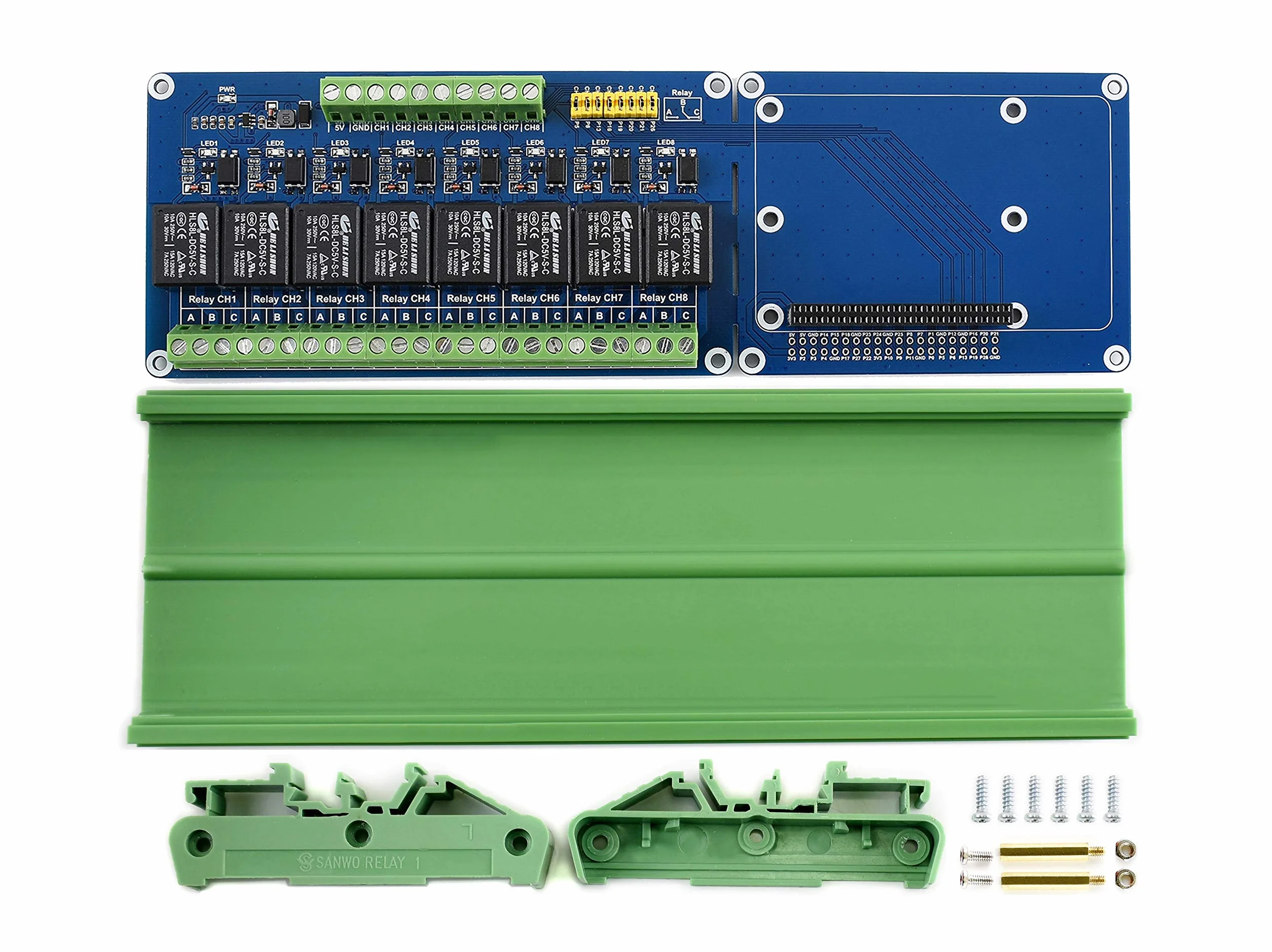

Componentes incluidos: Tablero de relés RPi (B) x1, Carcasa de montaje en riel inferior x1, y Paquete de tornillos x1
Fabricante de CPU: Waveshare
Estándar de comunicación inalámbrica: 802.11b
Dispositivos compatibles: Raspberry Pi A+/B+/2B/3B/3B+, Jetson Nano
Tecnología de memoria RAM: LPDDR2
Dimensiones del producto: 6l. x 1,1an. x 0,5al. centímetros

- Supports Raspberry Pi A+/B+/2B/3B/3B+ High quality relays, loads up to 5A 250V AC or 5A 30V DC

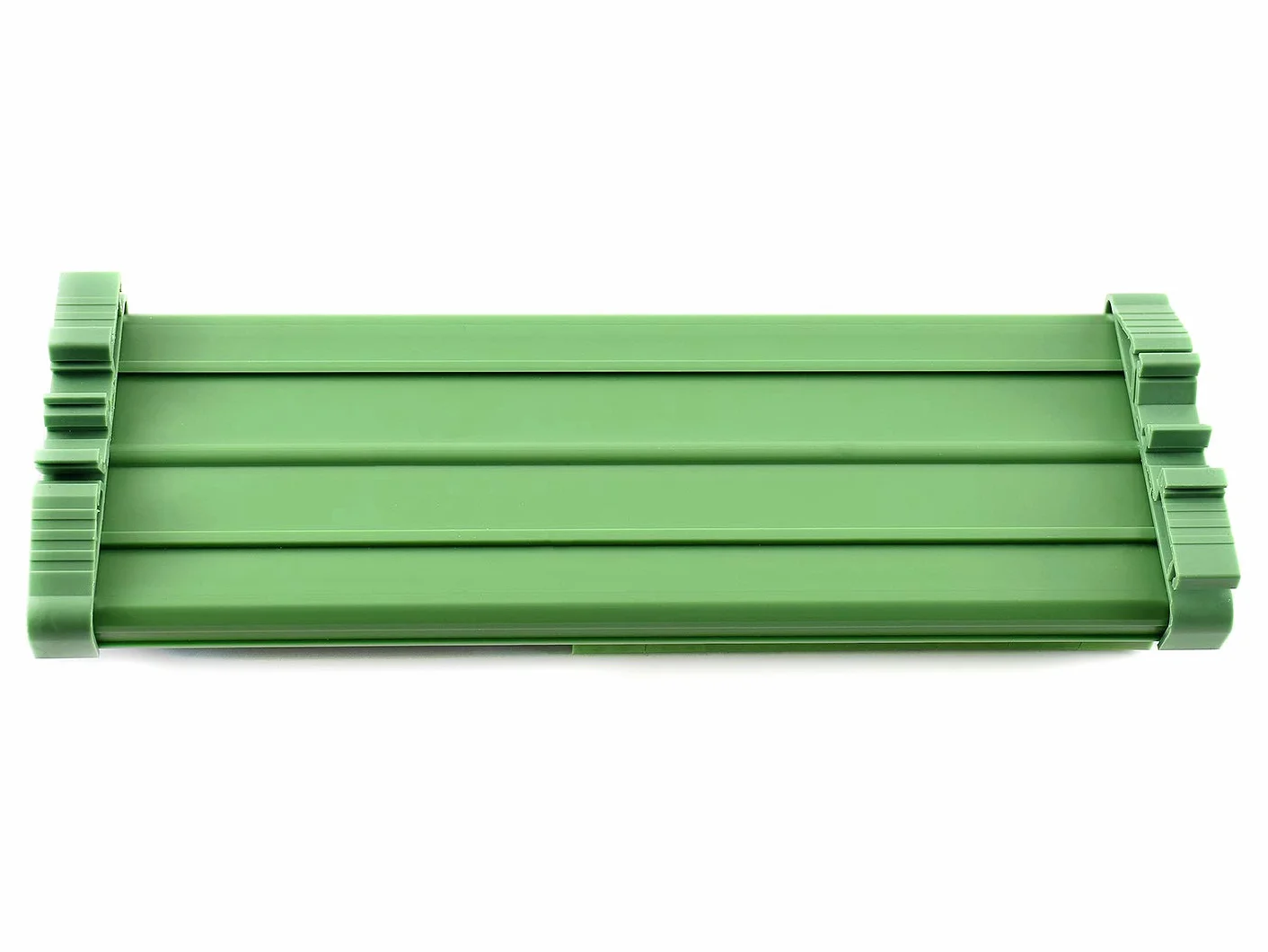

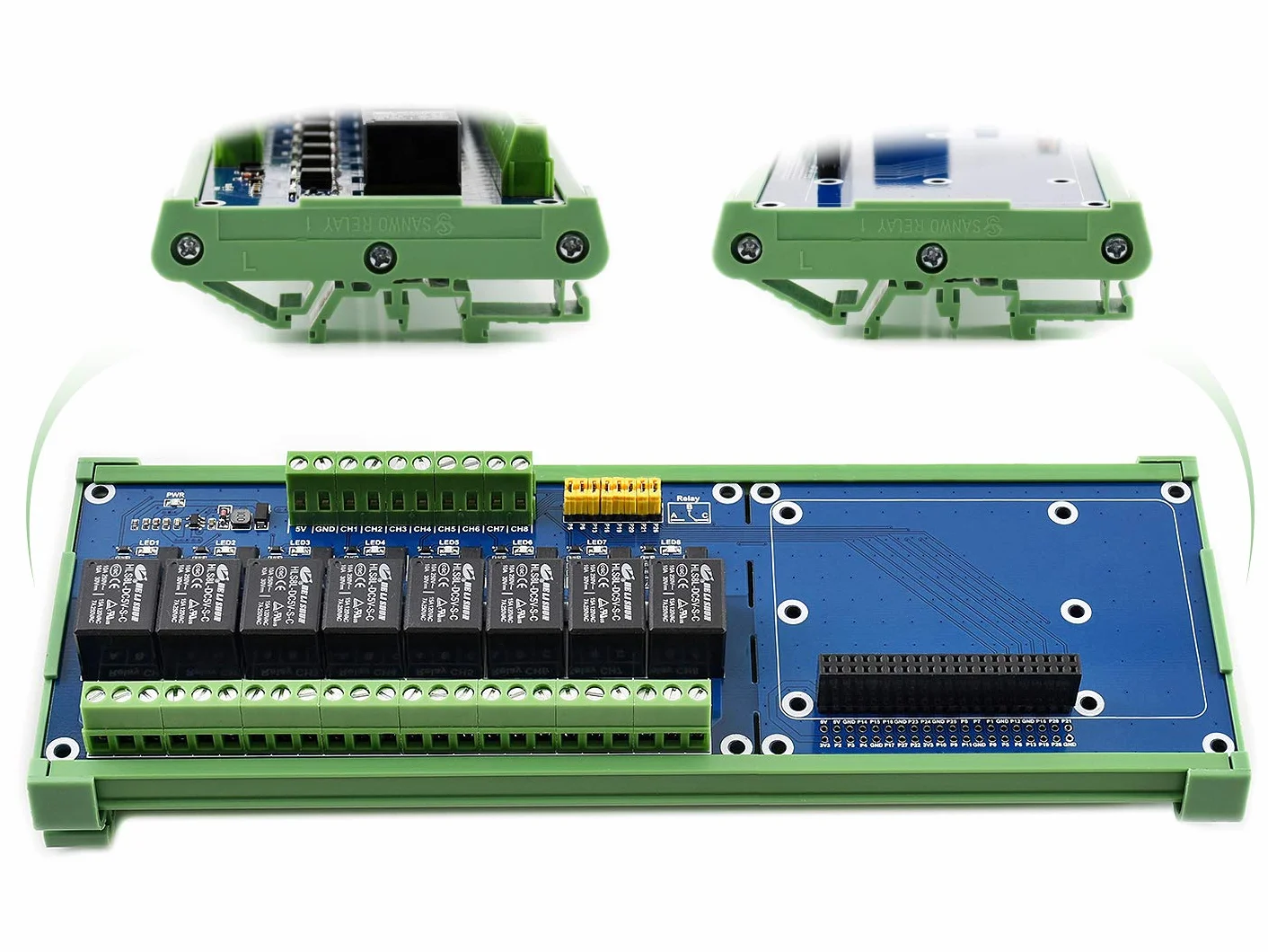

- Photo coupling isolation, prevent interference from high voltage circuit Standard rail mount bottom case
- Onboard LEDs for indicating relays status Relay control pin selection jumper, allows to control the relays by custom pins other than the default pins
- Reserved control Interface, allows to work with controllers like PLC
- Comes with development resources, including examples in wiringPi, bcm2835, python, python-bottle (webpage control), and crontab (cron job)
- rpi relay board development home appliances photo coupling isolation voltage circuit jumper control interface trigger signal onboard led
