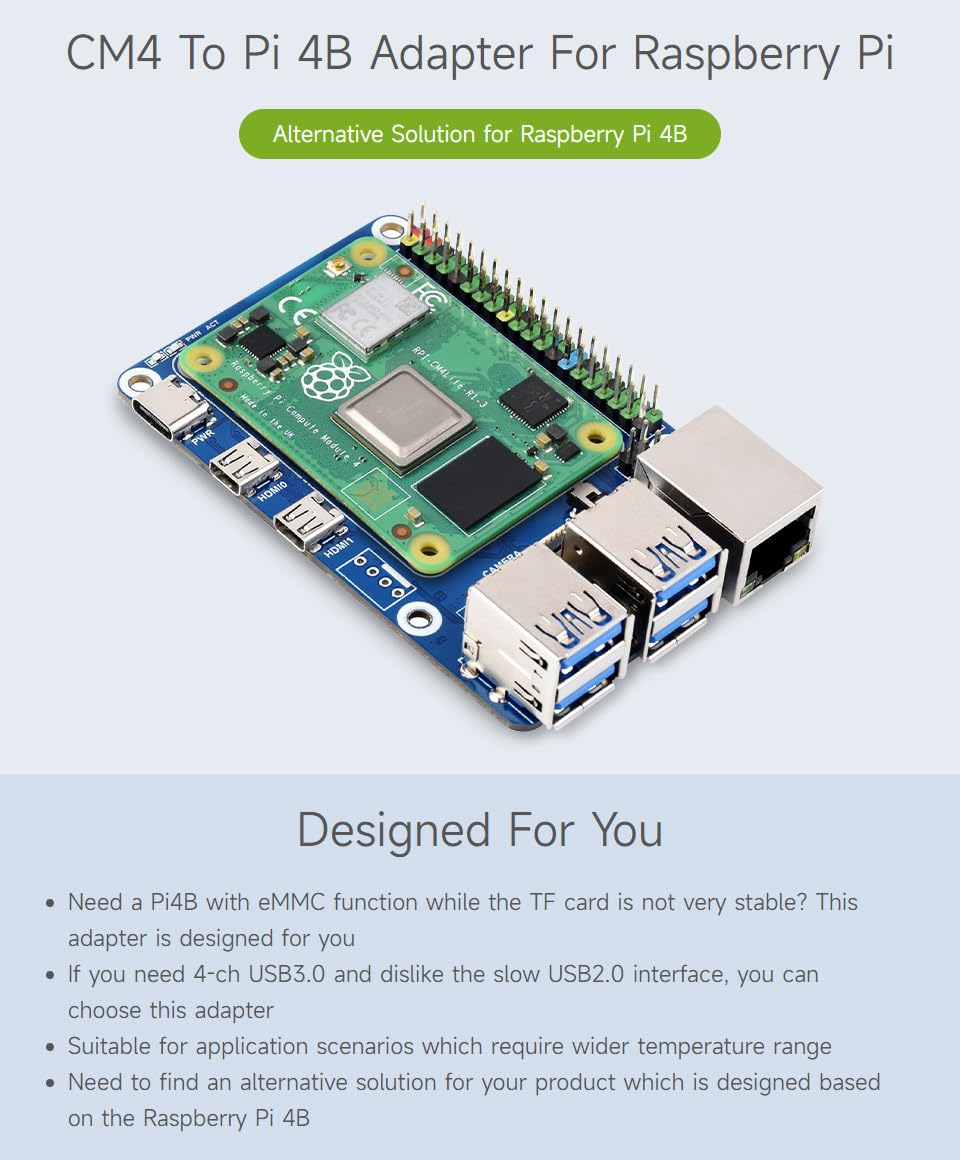

Waveshare CM4-to-Pi4-Adapter for Raspberry Pi CM4, Alternative Solution for Raspberry Pi 4B(Can be Used as Pi 4B by Combining The Adapter with CM4)

Dispositivos compatibles: Ordenador personal
Marca: Waveshare
Cantidad de productos por paquete: 1
Fabricante: Waveshare

- Onboard standard CM4 connector, support access to CM4 Lite/eMMc series boards with Quad Core Cortex A72 64-bit processor, more powerful performance

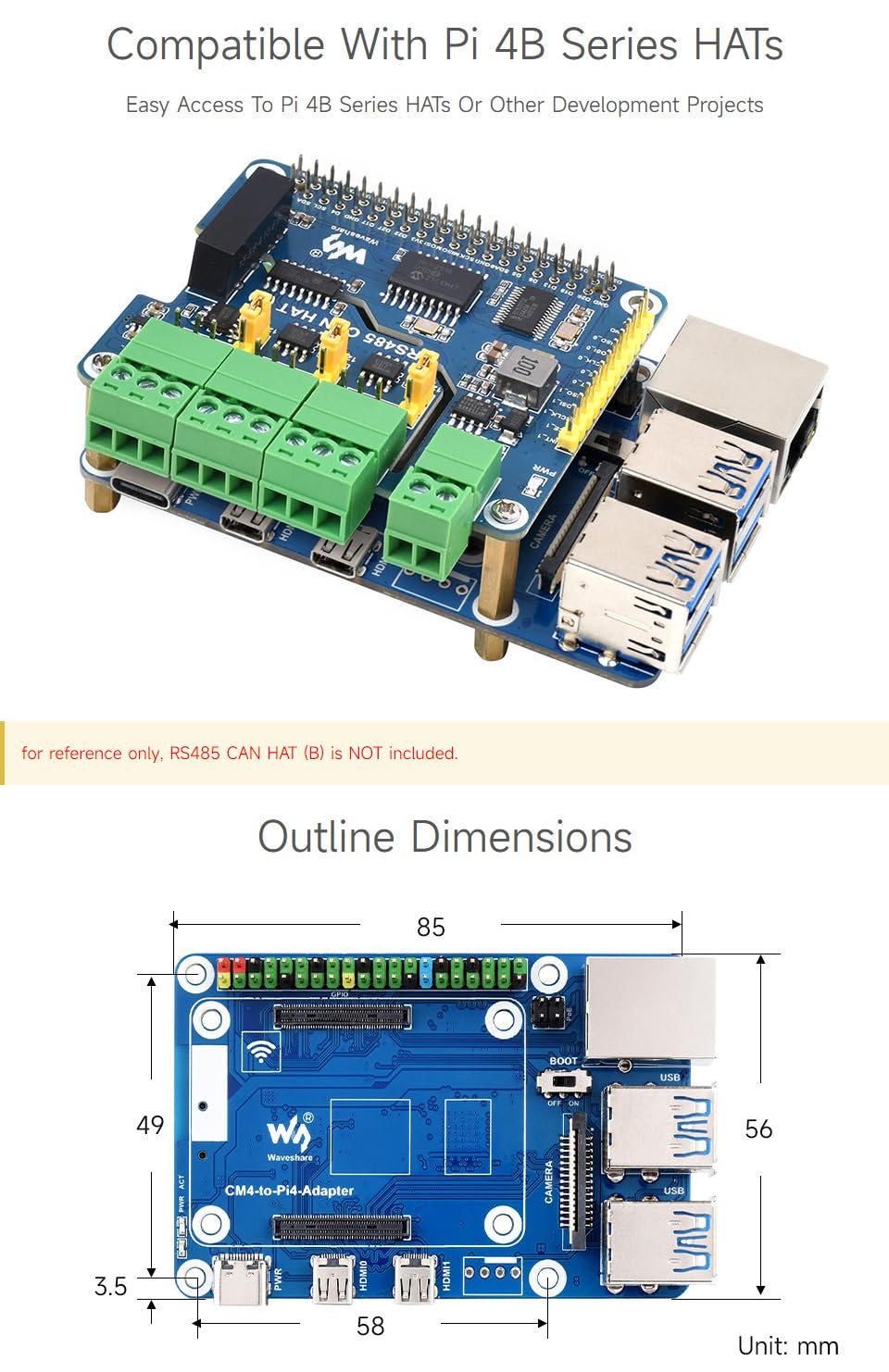

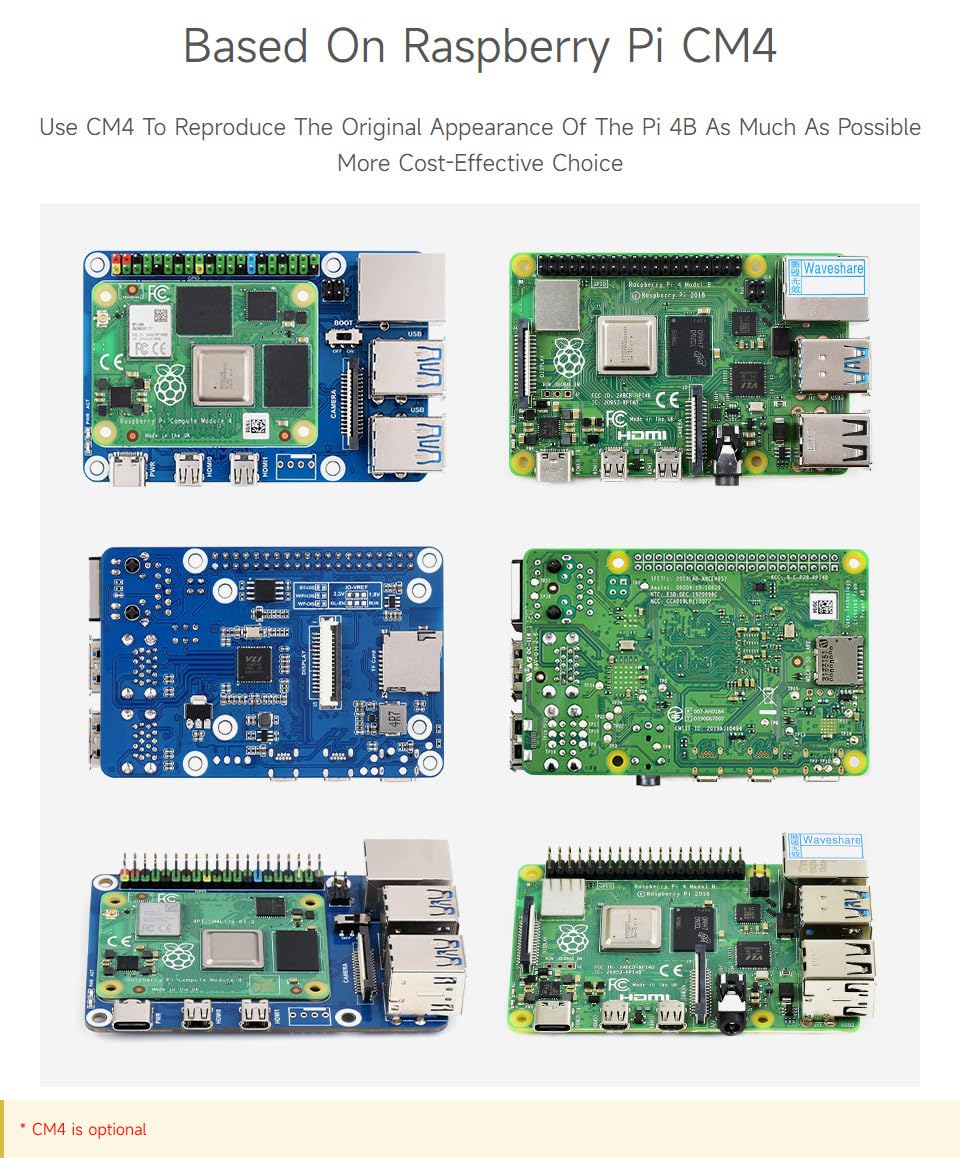

- Use CM4 to reproduce original appearance of Pi 4B as much as possible, Easily compatible with the interfaces of Raspberry Pi 4B board, Compatible with Pi 4B series HATs

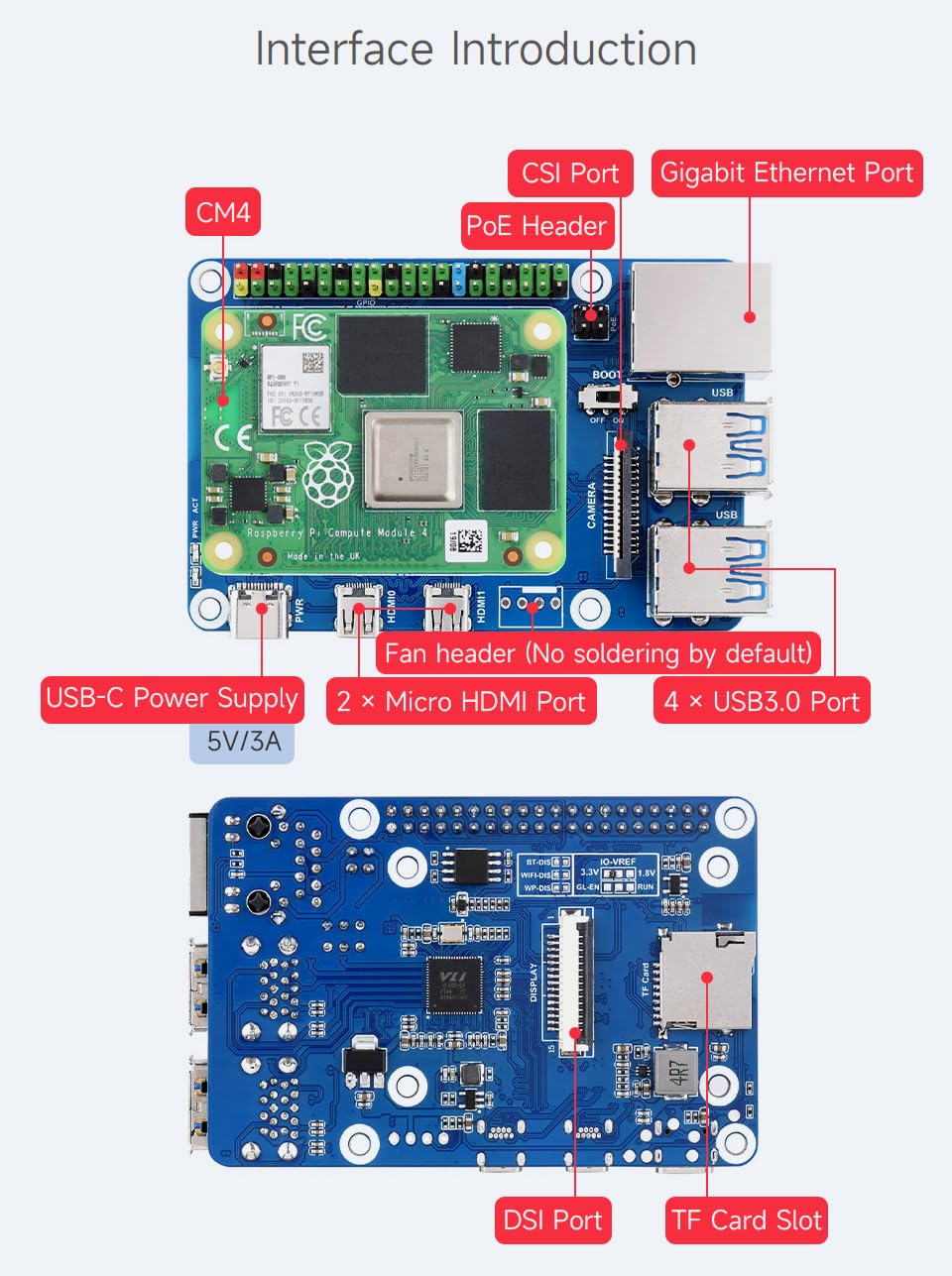

- Onboard 4-ch USB 3.0 ports, compatible with USB 2.0/1.1 transmission; Onboard RJ45 Gigabit Ethernet port, 10/100/1000 M adaptive; Onboard PoE header, for connecting PoE HATs
- DSI interface is DSI1; USB Type C interface is for the power supply or can be used as the USB SLAVE interface for programming images
- Do not connect to other devices when using the micro USB port to program the image for ensuring the power supply of CM4; CM4 must be provided by 5V 2A, or it will shut down, lower frequency, etc.
